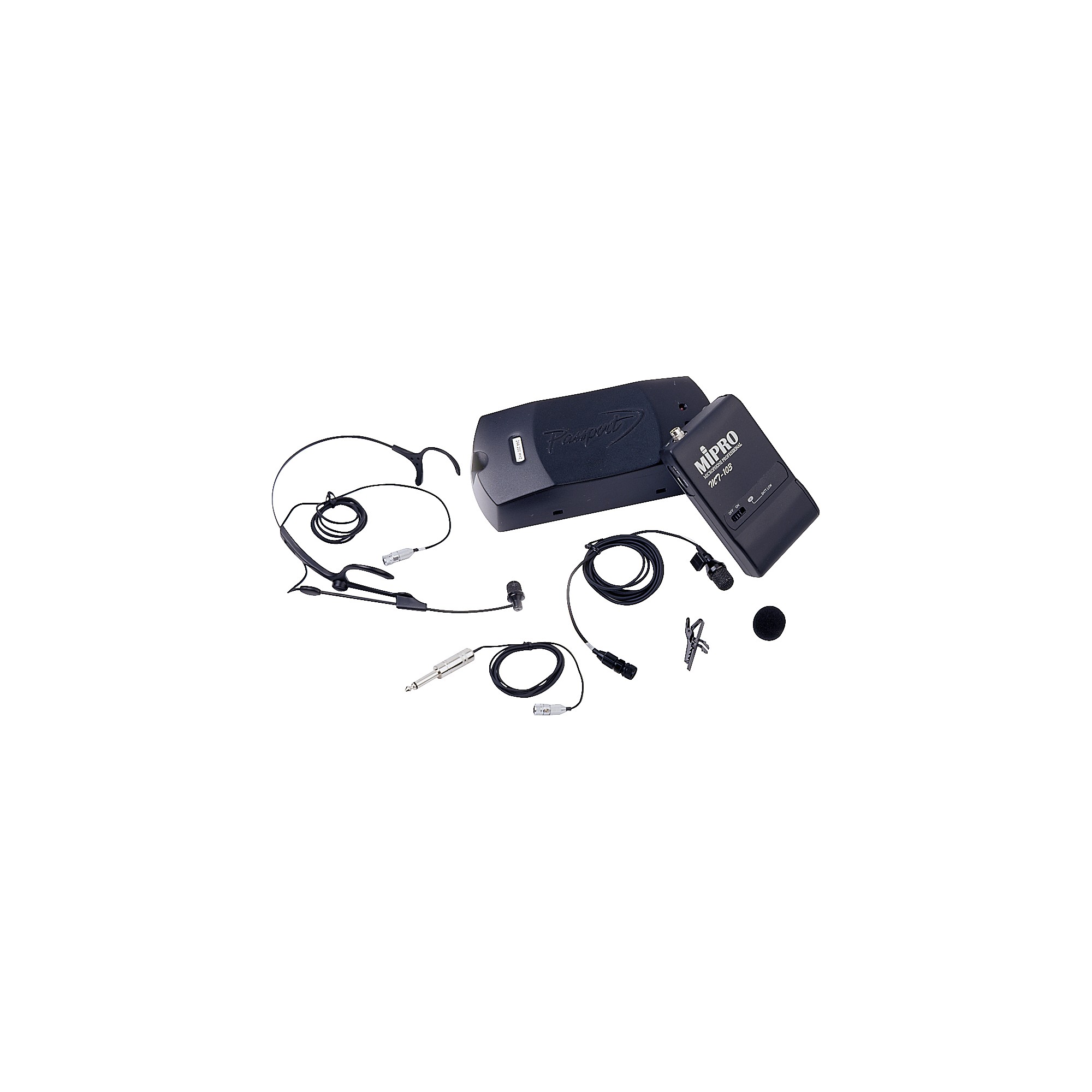

The Fender Passport Wireless Executive System is a unique, extremely simple, yet effective system, that provides high quality, reliable wireless microphone operation. The Executive System contains a belt-pack transmitter, a lavalier microphone, a headset microphone, an instrument cable, and a custom designed docking receiver.

The Executive Wireless System combines high technology design with the latest construction methods and high quality components for superior performance in all applications. Once installed, the only requirement of the operator is to make sure the microphone/ transmitter is fitted with a fresh battery.

Belt Pack Transmitter Unit

The Belt Pack transmitter has a 4-pin input connector for use with the interchangeable microphones and instrument cable. The microphone and instrument cables have a miniature jack plug. These have threaded collars to assure secure attachment to the transmitter. When attaching an input source, make sure to insert its jack plug, then turn clockwise to lock into place.

Lavalier Microphone

The lavalier microphone, (sometimes known as a lapel microphone), is very effective and relatively invisible. The microphone element is an electret-condenser type.

Headset Microphone

This microphone is essentially of the same type as the lavalier microphone. The Fender headset system can be worn securely and comfortably even when used by physically active performers or instructors. It is designed to go underneath and around the hairline at the back of the neck and fix lightly but securely to the ears of the user. The neckband is adjustable for size and fit. The pivot arm tension and length can be adjusted.

Custom Docking Receiver

The wireless receiver is built into the "docking" unit that mounts inside Passport's storage compartment. All power, audio and antenna connections are built into the docking receiver.

Tone Key

With the Passport Wireless System, the transmitter and receiver are locked to a specific tone key frequency that is carried "invisibly" with the signal from the transmitter. If the receiver loses this tone key, it soft-mutes the output of the receiver. In this way, should for example, the battery run low in your transmitter, and its transmission is interrupted, no annoying noises or spurious signals will be fed to the system.

Instrument Cable

The instrument cable allows virtually noise-free, high quality wireless transmission of instruments or line level sources. The cable simply plugs directly into the source instrument and the transmitter.
