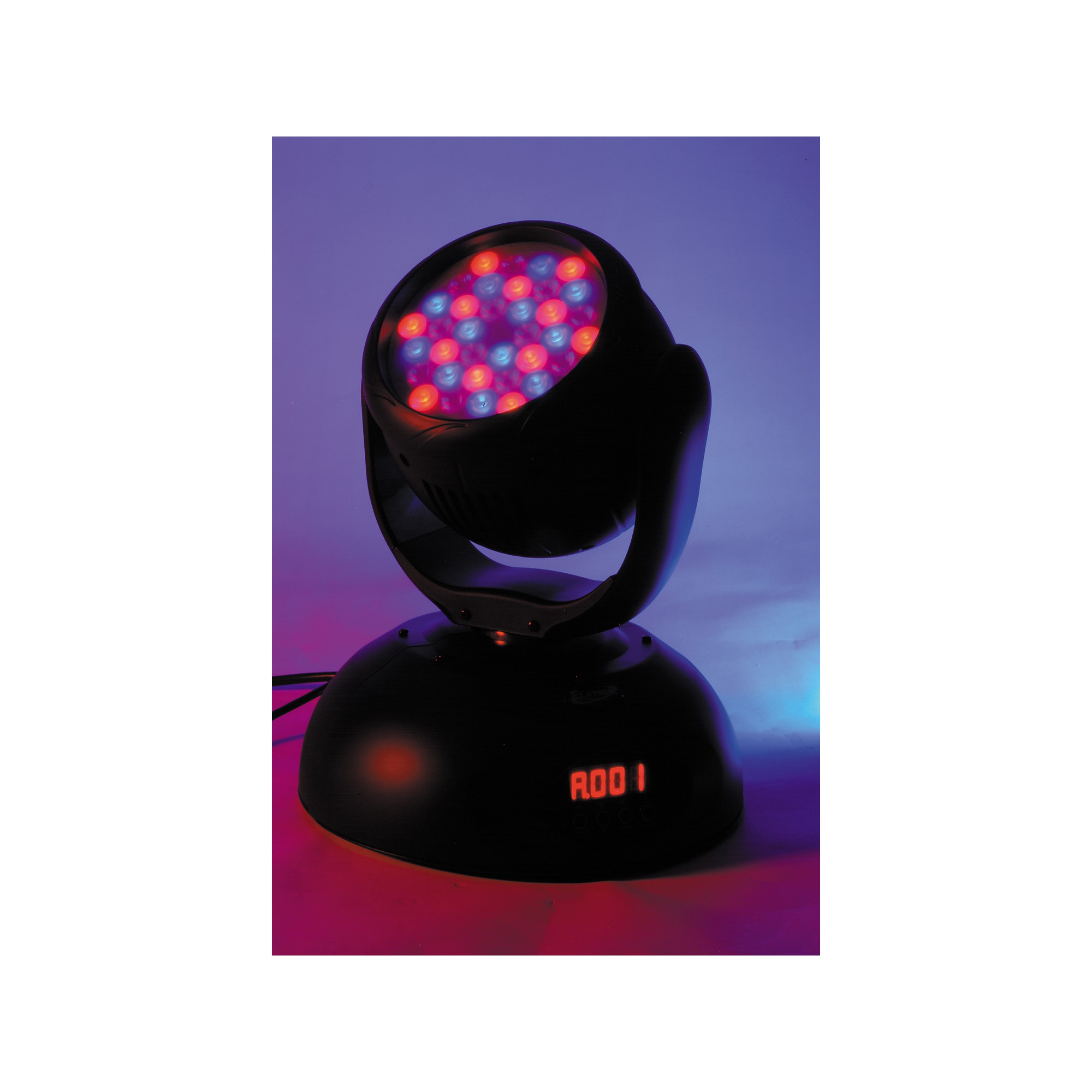

Experience infinite color possibilities with the convenience of standard DMX 512 control. The Design LED 36MX moving head fixture is a high output intelligent LED moving head fixture that's packed with features including:

Equipped with 36x 1-watt LEDs: (12 red, 12 blue, 12 green)

High quality Luxeon LEDs manufactured by Lumileds, USA

100,000 hours RATED LEDs

Pan 540 / Tilt 265

Low power consumption

Minimal heat emission

Step-less, smooth RGB additive color mixing, 16.7 million colors (24-bit)

Preprogrammed colored macros

Strobe-effect with a maximum flash rate of 18fps (white or color)

12 or 10 DMX-channel operation (16 or 8 bit operation)

Flicker-free operation for television and film

Brilliant light output

Beam angle: 39-degrees with light frost filter

3 operation mode: DMX controlled, stand alone or sound activated via internal microphone)

Dimmer intensity from 0%100%

Control board with 4-digit display and foil-keyboard

Digital display can be turned 180 to fit different installation position

RDMX (Remote DMX addressing from any DMX console)

Auto test for all functions

Automatic Pan/Tilt Correction

USITT DMX-512 Complaint

Value of each DMX-channel can be displayed

Built-in power supply

Built-in 3-pin XLR serial data connection

Operate standing up or up-side-down

8 User Assignable Program Presets - Internal Program: Edit and save programs to the incorporated EEPROM through the front control panel or external controller; you can save a maximum of 48 scenes, and run the saved programs by using the "run" menu on the front control panel
